Cool with compressed air
Blowing with compressed air can be a good alternative when cooling, to get an even and controlled process or when avoiding liquid in the cooling process. Silvent has also developed a unique cooling air nozzle, SILVENT F 1, to facilitate fast, efficient spot cooling.
Silvent
Cooling of the trundle

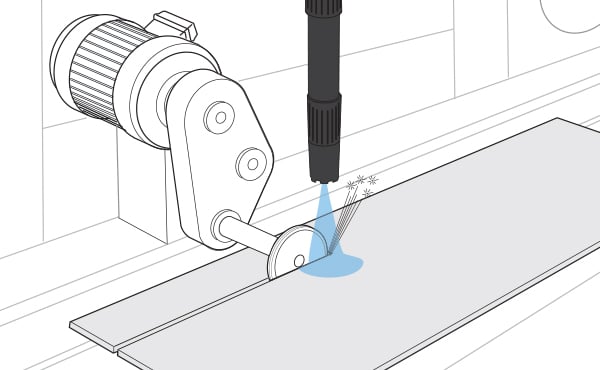

The cooling nozzle SILVENT F 1 has a unique technology that has been developed for spot cooling. The air nozzle is cooling the trundle, to remove the unwanted heat when cutting the metal, while the metal chips are blown away.
Customer case
Cooling when cutting metal
Industry: Home appliances and electronic components
The company used blowing with compressed air when cutting metal to cool components and blow away swarf. Open pipes are the most common method of blowing with compressed air in industry, which causes high sound levels due to the turbulent air jets. Blowing with compressed air is one of the biggest sources of noise in the manufacturing industry.
Solution

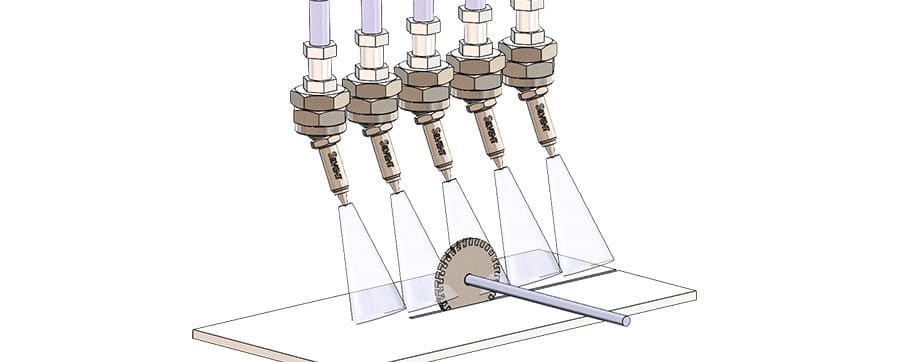

Five SILVENT 011 air nozzles were installed to improve the application. On installation, the blowing distance and blowing angles were precisely adjusted for the best possible cooling without generating high sound levels when e.g. blowing across sharp edges. It was also possible to remove the swarf more efficiently.
Result
By replacing the open pipes with Silvent air nozzles, it was possible to reduce the sound level in cooling. The nozzles reduced the turbulence from blowing with compressed air, which led to lower sound levels.
Customer case
Drying after a cooling process
Industry: Plastic and rubber products
Production problems occurred because the water, which was used for cooling, was not removed from the product. The problem affected the entire production process and led to far too many costly production stops.
Solution

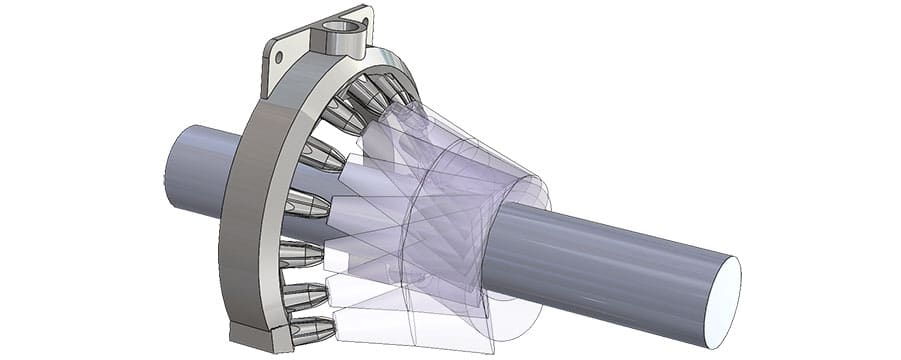

The air doughnut SILVENT 463 L has a 360° full coverage air cone that provides for efficient blow-off around the entire object. Thanks to optimized blowing angles and distances, the new blowing application was able to dry using less compressed air, resulting in better energy efficiency and lower costs.
Result
It was possible to remedy the problem by installing an air doughnut designed with multiple optimized air nozzles positioned in a circle. In this way, the air jets were able to hit all around the product and ensure that it was properly dry. The nozzle installation meant that unnecessary production stops were avoided, rendering the manufacturing process more efficient.
Professional Industrial Services for Every Project
Our products and expertise provide improved manufacturing processes, lower energy consumption and a better work environment.
