Premium Metal Joint
Easy belt jointing by putting a pin in.
Feature
- The belt can be easily jointed and attached to the conveyor by simply threading a pin.
- No exposed metal fittings prevent damage to the material being conveyed or to the conveyor.
Constituent Materials
- The thickness difference between the belt and the Premium Metal Joint is approximately 2 to 3 mm.
Application
- Logistics warehouse: NS82VKS0/15QGTT
Constituent Materials
- Ideal for conveyor lines for cardboard and plastic cases at distribution terminals, etc.

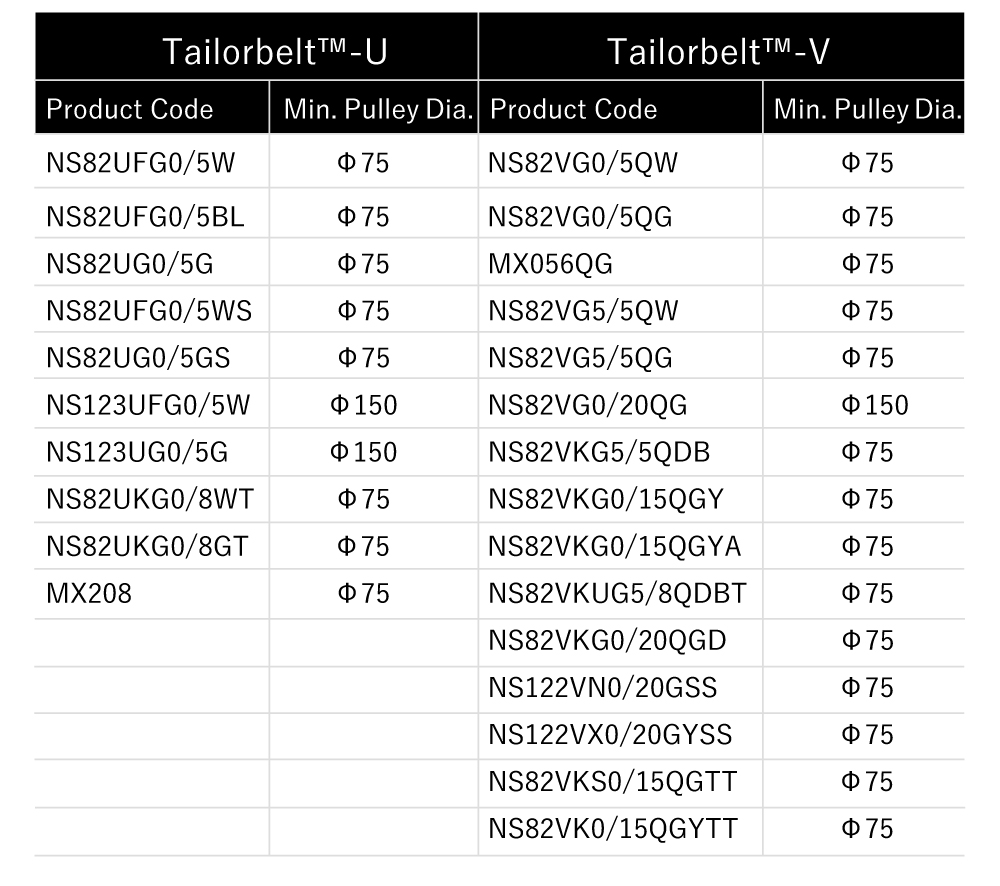

Range of Application
- Applicable belt, Minimum pulley diameter (mm)

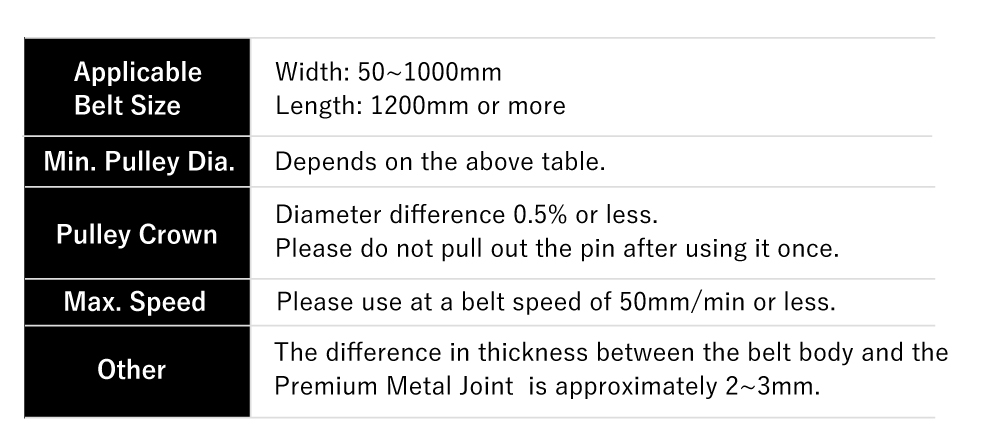

- Processing range
Caution

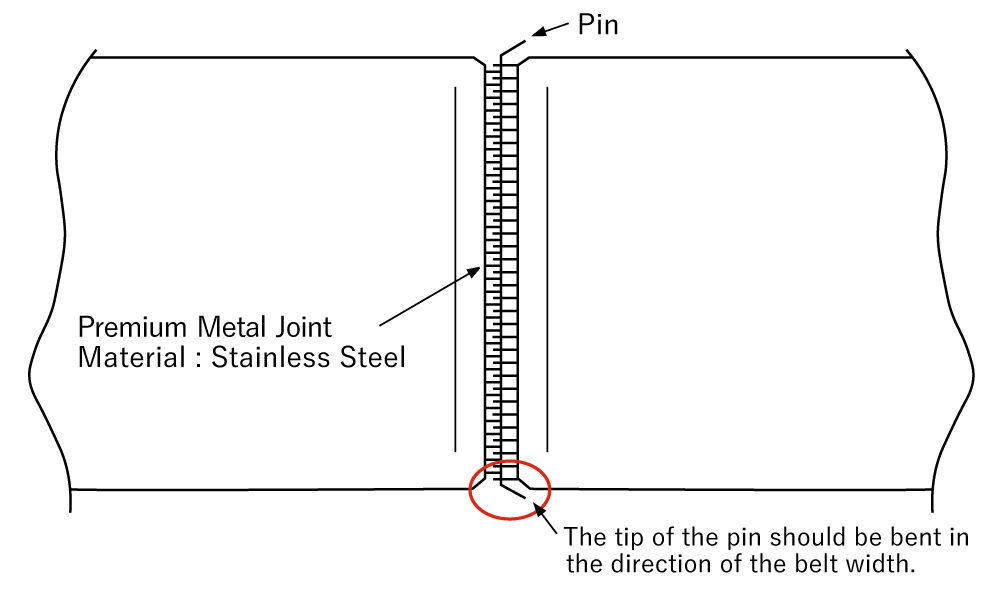

- Standard pin is a nylon-coated pin. When attaching a belt to a conveyor, both ends of the pins should be bent in the direction of the belt width to prevent disconnection.
- To prevent damage to the material being conveyed or to the conveyor frame, a pin length similar to the belt width is also available. Please tell us when you order the belt.
