Premium Finger Jointing
Highly flexible and resistant to cracking at the belt connection.
Feature
- It can handle finger joint cracks caused by riding up tracking guides which prevent belt meandering.
Premium finger jointing with reinforced fabric increases the strength of the jointiong area by 1.5 times. This prevents cracking due to tracking guides riding up or entrapment of a foreign object. - Knife-edge makes accumulation possible.
Premium Finger Jointing is flexible and can handle knife edges.In addition, high welding strength and surface smoothness enable accumulative running.
Specification Lineup

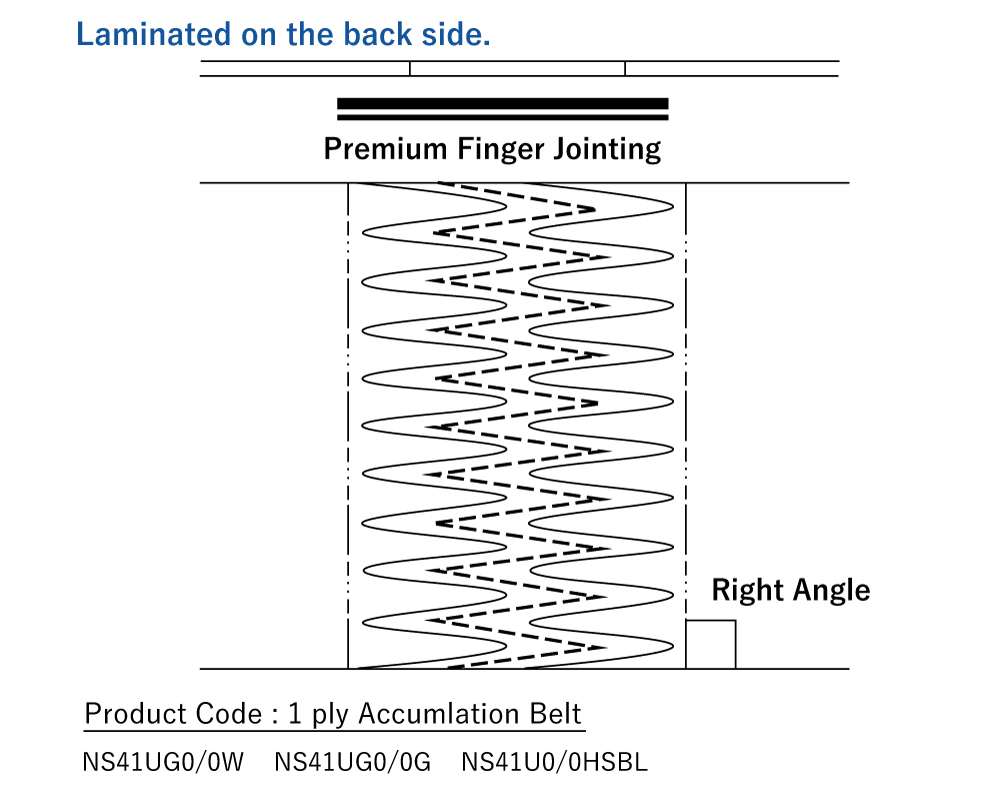

Standard
- Premium Finger Jointing (standard type) can also accommodate a bias angle of 60°. If no special instructions are given, the angle will be right-angled.

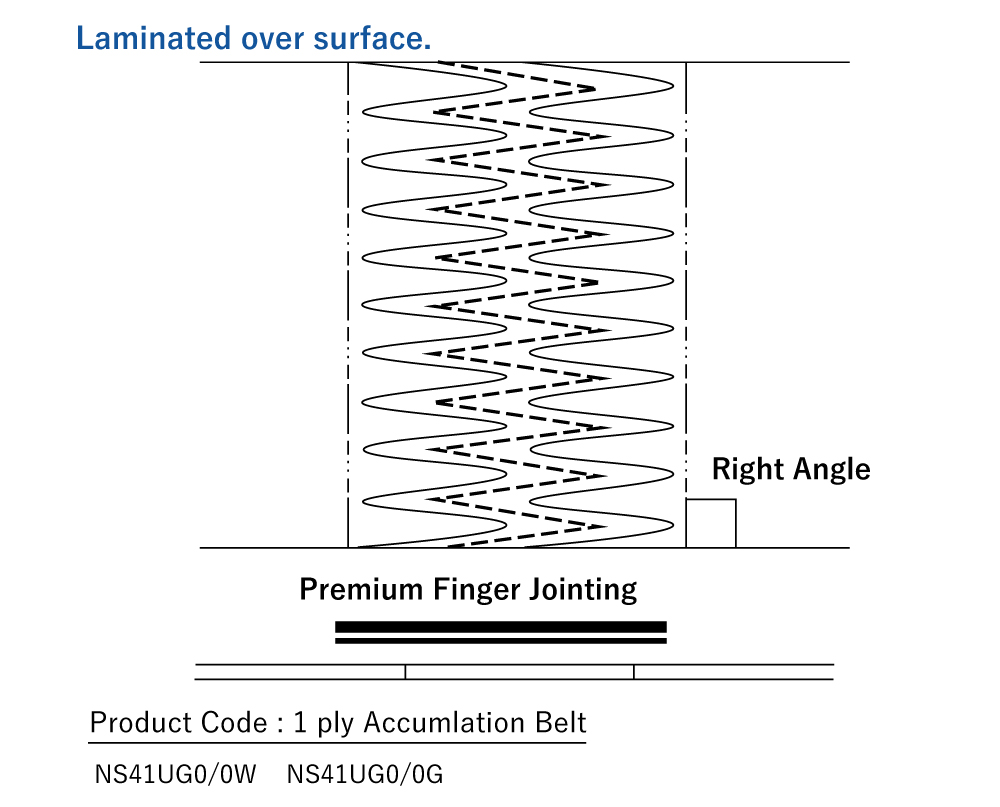

Knife Edge
- Premium Finger Jointing (knifeedge type) can also accommodate a bias angle of 60°. If no special instructions are given, the angle will be right-angled.
Application
- Ideal for lines where products are held and aligned.

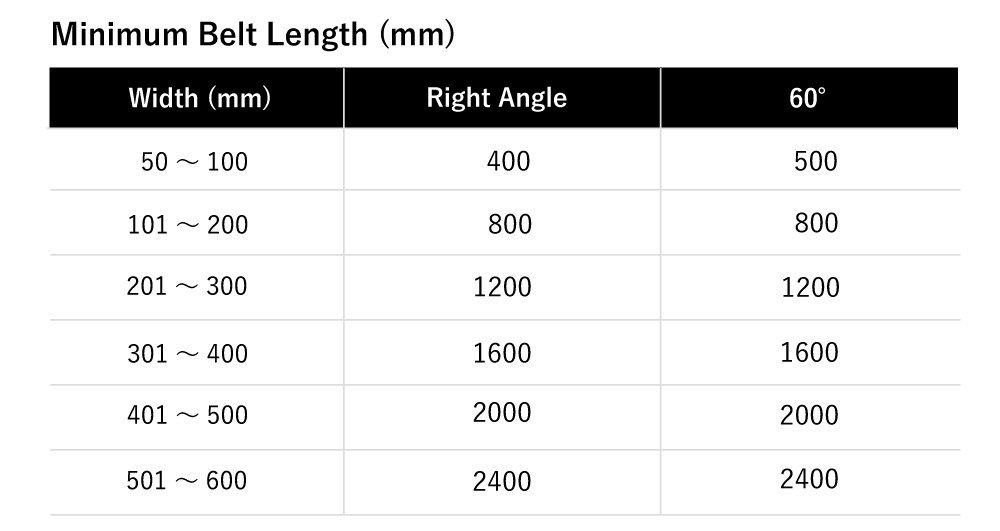

Range of Application
- Processing range
Caution
Standard type of Premium Finger Jointing is welded on the back side. For knife-edged type, the surface is welded, so please specify (knife edge) when ordering.
