High-Performance Inclined Conveying Belts
Excellent grip. Maintains conveyance ability even if dust is attached.
Feature
- Special engineering plastics and herringbone pattern are combined for the surface cover.
- This structure prevents slipping even if dust gets on the belt.

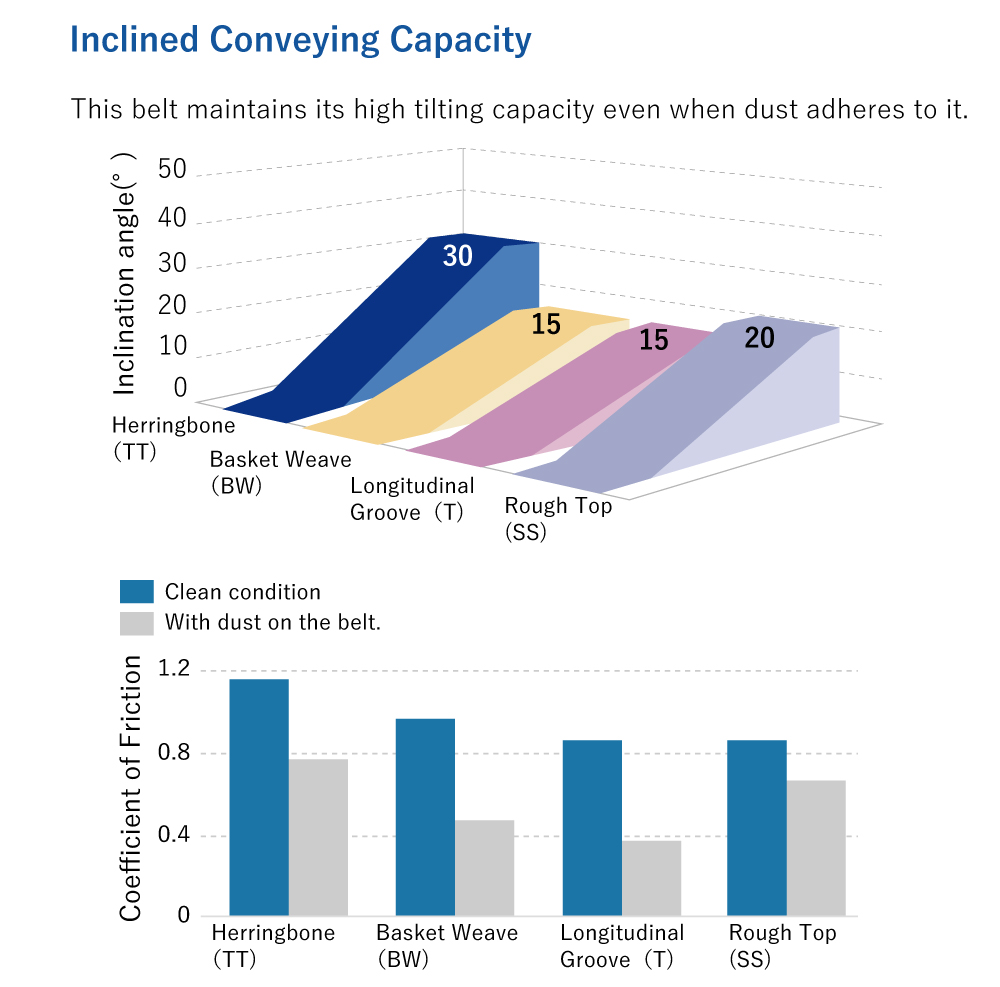

- High-Performance Inclined Conveying Belts: Capable of transporting at an inclination angle of 30 degrees (approx.)
- High-Performance Inclined Conveying Belts: Noise-reducing surface pattern.
Specification Lineup
Special Elastomer
- Surface：Special elastomers and herringbone patterns.
- Core fabric：Polyester fabric with excellent low noise.（Only for NS82VKS0/15QGTT）

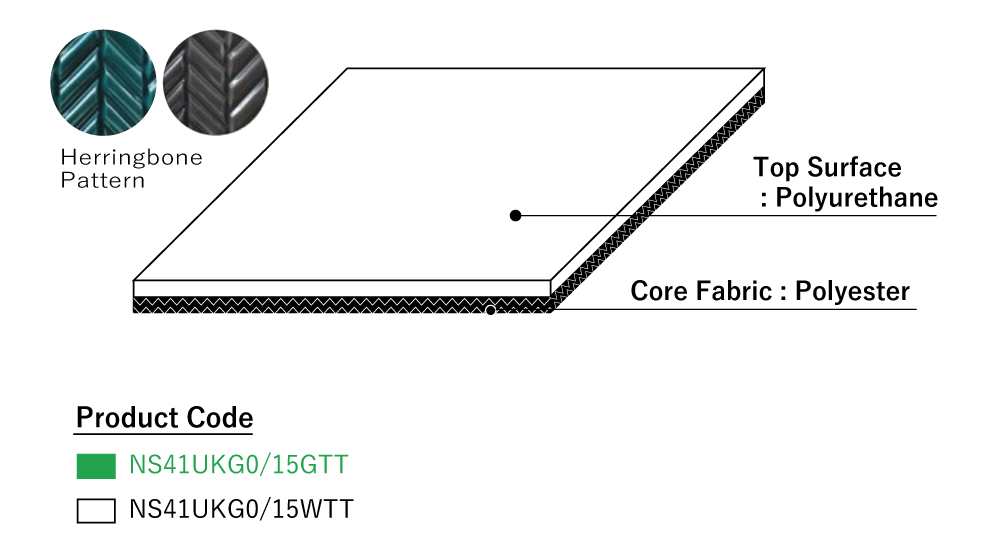

Polyurethane
- Surface：Special polyurethane and herringbone pattern.
- Core fabric：Non-fray polyester fabric.
Application
Special elastomer type: Inclined conveyor lines for logistics terminals, airports, newspaper distribution centers, etc.
Polyurethane type: Inclined lines for packaged goods such as food factories, cardboard boxes, etc.
- Logistics warehouse: NS82VKS0/15QGTT

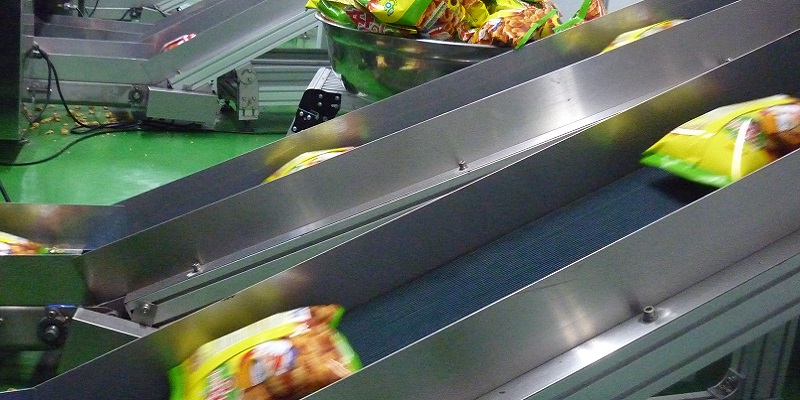

- Food factory: NS41UKG0/15GTT
Caution
The inclination angle varies depending on the type and nature of the material being conveyed, the degree of belt deflection, and belt speed. Inclination testing is recommended in advance. Dust buildup on the belt surface can cause slipping of conveyed materials. Periodic cleaning of the belt surface is also recommended.
